Authentication Screens

login screens

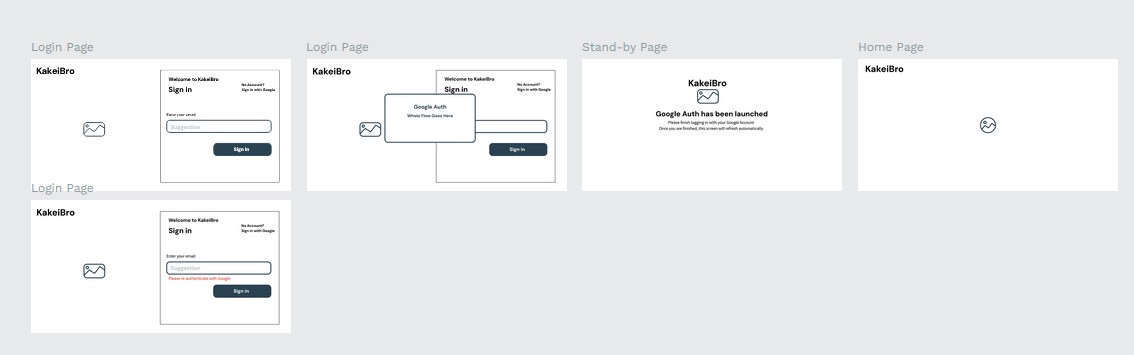

Figure 1. High Level View of Login Screens

As mentioned in the domain section, we will follow specific flows that are relying entirely on Google Auth, if we have a Guest, we will make them go through Google Auth’s screens on a minimized new window, once the flow is done, the main screen should refresh automatically and throw the user into the Home screen.

If we are dealing with an internal user, in case its token grace period has expired, we will just show an error message below the e-mail input indicating for the user to run the Google Auth flow again, and simply follow the same flow as it would be for a guest. In case the token is still valid we will immediately show the Home Screen.

Everything will appear to run on the same screens, but the backend will have to account for the different situations and make the right calls and right processing of data.
