Frontend

As mentioned in the domain section of the docs the web app will be built with React. But just like any other application we need to choose an architectural pattern to base our folder structure and workflow around, and also designate code styles, plus sanity checks (baked into the developer experience).

For further information to the chosen architecture pattern please head to UI Folder Structure Patterns

Setup

The project was generated with vite. Using the command:

  • pnpm create vite@latest kakeibro-web (Select React > Typescript + SWC)

  • pnpm install

Formatter and Linter

Because vite follows best practices and modern web development practices, it already comes with eslint integrated, and its auto-generated README also has instructions on how to extend the configuration so that we get a richer dev experience with the linter.

The formatter will be prettier, however, we are not going to leverage multiple libraries running on their own, mostly because there are conflicts with eslint most of the time, however, due to this fact, eslint has a specific plugin that helps bridging its own rules with prettier (plus leveraging the package on its backend). Hence we will install eslint’s prettier integration:

pnpm i --D eslint-plugin-prettier eslint-config-prettier
pnpm i --D --E prettier

Just so that we stick to one prettier version without it dragging into new versions that might break our project we use --save-exact or --E. And because all of these libraries are solely for dev purposes we will install them as dev dependencies --save-dev or -D

Once this is done it’s advisable to set your IDE to use ESLint as its default formatter, (as we mentioned before, with the prettier plugin it will leverage prettier as the code formatter on the backend).

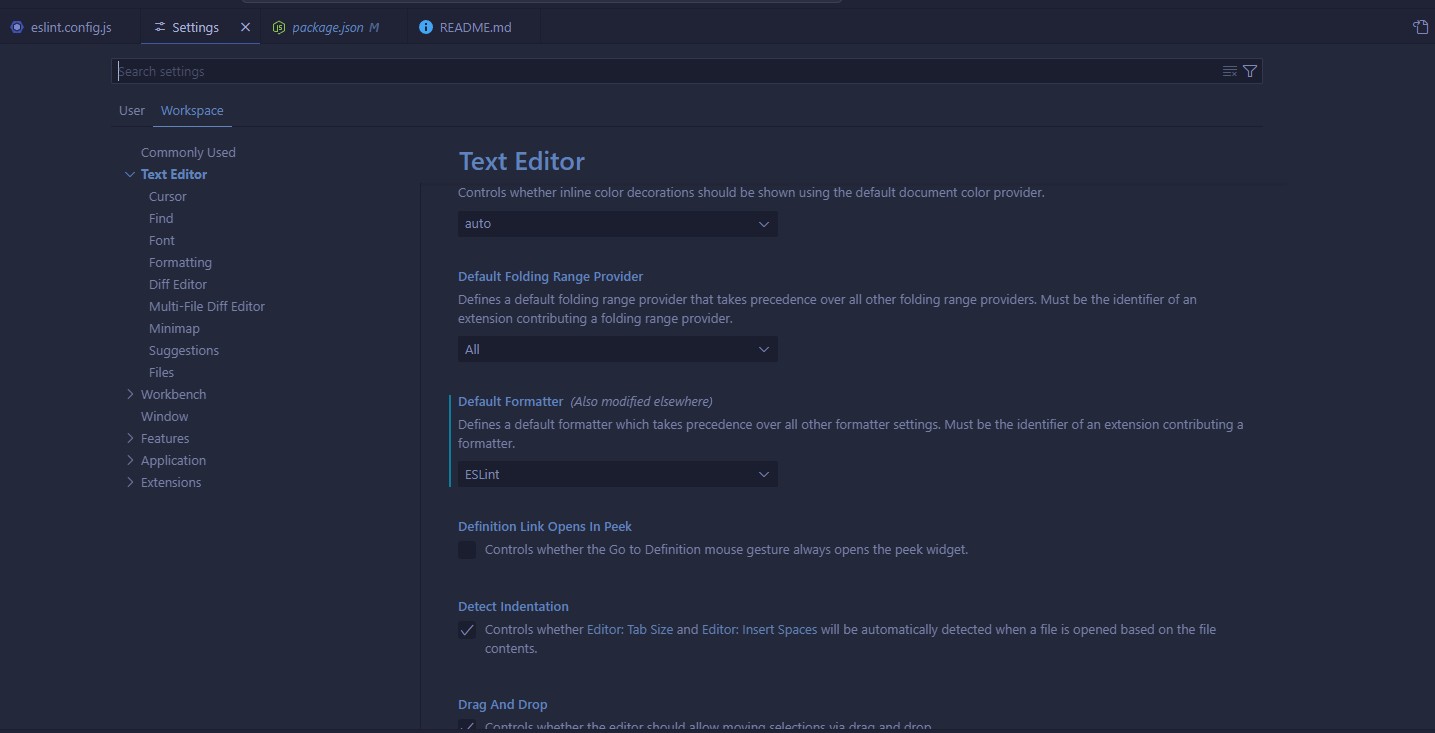

vs code eslint formatter

Figure 1. VS Code Example

In case there are other plugins such as prettier, standardjs, etc installed it is advisable to have them disabled on the project’s workspace due to our philosophy of leveraging all of these tools as packages and through configuration files that allow for all of the setup to be transferable across all developers, we don’t want for IDE plugins with their own set of rules to interfere. The only plugin that should be leveraged to get intellisense, code fixes, and other things through the IDE’s plugin reading our config files and packages should be ESLint

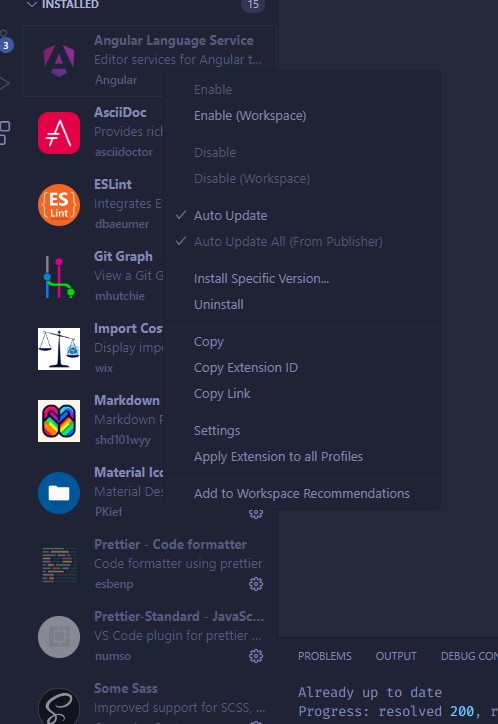

vs code disabled example

Figure 2. VS Code Extensions Disabled for Workspace

In the case of VS Code, the moment we establish configurations for the workspace such as the default formatter a .vscode folder will be created with all of this in mind. COMMIT THIS FOLDER. So that any other developer that opens up the folder with VS Code it will automatically pick up on the setup.

This project specifically works with ESLint’s Flat Config configuration. Which is the new ESLint way of configuring things, and so, the plugin on the IDE should be set to follow this:

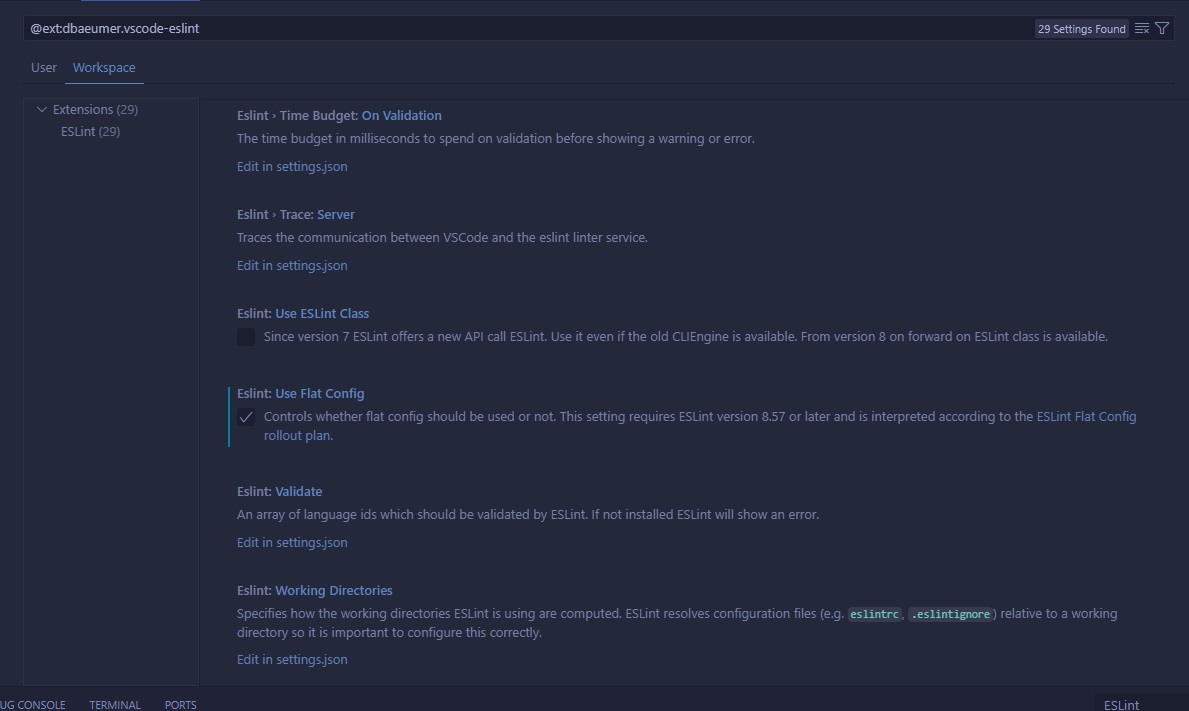

eslint config

Figure 3. ESLint Flat Config

It’s worth noting that both eslint and prettier are more catered as their own tools that run on the command line and take care of highlighting errors and fixing them accordingly, with that in mind, we can always head to their github repositories in order to read about what you can do with them. But for our specific use case, we want to use them to so that we can format things according to one code line, and so that the IDE also picks up on rules that are being inflicted so that the developer is moved towards coding with the specific guidelines

With that in mind, the settings.json that’s at .vscode should look something like this:

{
    "editor.defaultFormatter": "dbaeumer.vscode-eslint",
    "editor.formatOnSave": true,
    "editor.codeActionsOnSave": { (1)
        "source.fixAll.eslint": "explicit" (2)
    },
    "eslint.useFlatConfig": true,
}
1 This is key, we are sort of configuring a macro that when hitting the Save key on the IDE we are running "something".
2 In our case we want to run eslint and fix all errors that it might encounter, it used to be true, but there’s a warning stating that it will be deprecated for the explicit value.

Once that’s configured everytime we hit Save, then eslint (integrated with prettier) should run and fix as much errors and warnings it might highlight (and of course follow any prettier rules that are also enforced).

Here’s the breakdown of the configurations that were setup:

import js from "@eslint/js";
import globals from "globals";
import reactHooks from "eslint-plugin-react-hooks";
import reactRefresh from "eslint-plugin-react-refresh";
import tseslint from "typescript-eslint";
import eslintPrettier from "eslint-plugin-prettier"; (1)

export default tseslint.config(
  { ignores: ["dist"] },
  {
    extends: [js.configs.recommended, ...tseslint.configs.recommended],
    files: ["**/*.{ts,tsx}"],
    languageOptions: {
      ecmaVersion: 2020,
      globals: globals.browser,
      parserOptions: { (2)
        project: ["./tsconfig.node.json", "./tsconfig.app.json"],
        tsconfigRootDir: import.meta.dirname,
      },
    },
    plugins: {
      "react-hooks": reactHooks,
      "react-refresh": reactRefresh,
      prettier: eslintPrettier, (3)
    },
    rules: {
      ...reactHooks.configs.recommended.rules,
      "react-refresh/only-export-components": [
        "warn",
        { allowConstantExport: true },
      ],
      "prettier/prettier": [ (4)
        "error", (5)
        { (6)
          semi: true,
          trailingComma: "es5",
          singleQuote: true,
          printWidth: 80,
          endOfLine: "auto",
          singleAttributePerLine: false,
        },
      ],
    },
  },
);
1 Notice how we are importing a named property from the plugin package we installed.
2 This section was added following the guide that’s stated at the autogenerated README file from vite.
3 We declare as a plugin the eslint-prettier we imported in <1> so that it’s applied to the eslint pipeline.
4 And we can know configure the specific prettier plugin format through this key.
5 We are configuring so that any errors that prettier finds are highlighted as errors from eslint’s side.
6 And lastly this is the prettier configuration that we can customize how we see fit.
